Technical Specifications
|
Model |
MJZ-2 |
MJZ-3 |
MJZ-6 |
MJZ-10 |
MJZ-20 |
|
Capacity |
1-2T/Batch |
3T/D |
6T/D |
10T/D |
20T/D |
|
Power Consumption |
10kw |
15kw |
22.5kw |
42kw |
46kw |
|
Operation |
Batch and skid-mounted |
Batch |
Batch |
Batch |
Batch |
|
Raw material |
Used engine oil, pyrolysis oil, used transformer oil, used lubricating oil |
||||
|
Final products |
Non-standard diesel, diesel oil, base oil |
||||
|
Oil yield rate |
80-85% |
||||
|
Working pressure |
Negative |
||||
|
Construction |
Vertical type |
||||
|
Cooling method |
Water cooling |
||||
|
Fuel for heating |
LPG, Diesel, Natural gas |
||||
Raw materials to be processed
Plastic pyrolysis oil
Tire pyrolysis oil
Used engine oil
Used hydraulic oil
Advantages of MJZ series distillation plant
- Auto loading and auto slag oil discharging , high automation,
- Chemical and physical treatment, make sure the final to be high quality and expand its application,
- Negative operation pressure will make sure safety,
- Specially designed inside oil recycling system, there will be no coking inside the reactor,
- High oil yield, low loss percentage in the process
- Special emission purification system , to reach higher environmental standards
Application of Final Products
Used oil distillation to non-standard diesel
- Be used on low speed heavy-duty diesel engine, such as large agricultural machine, mining machine, ship, power generator, etc.;
- Be used on the automobile engine by mixing with standard diesel ;
- Be used as fuel for heating;
FAQ ( Frequently Asked Questions)
1.PyrolyQ1: How can we use the distilled diesel from waste tires or plastics?
A1: 1. Can be used for heating , 2. Can be used in the low speed and heavy duty engines, like boat, diesel generator.
Q2: What can we do with the heavy oil from distillation machine?
A2: 1. Can be sold as asphalt , if there is a market at your local, 2. Can be put back into the pyrolysis machine and refine it again.
Q3: Can we produce base oil from the distillation plant?
A3: Yes, we can produce base oil from the distillation plant, but the raw materials must be used engine oil, can not be pyro-oil.
Q4: Warranty. What are the over guarantees?
A4: All the plants from Mingjie has a 12 months guarantee since the act of acceptance is signed, during the warranty period, all the problems cause by quality will be resolved by Mingjie at its own cost, which will be indicated in the contract.

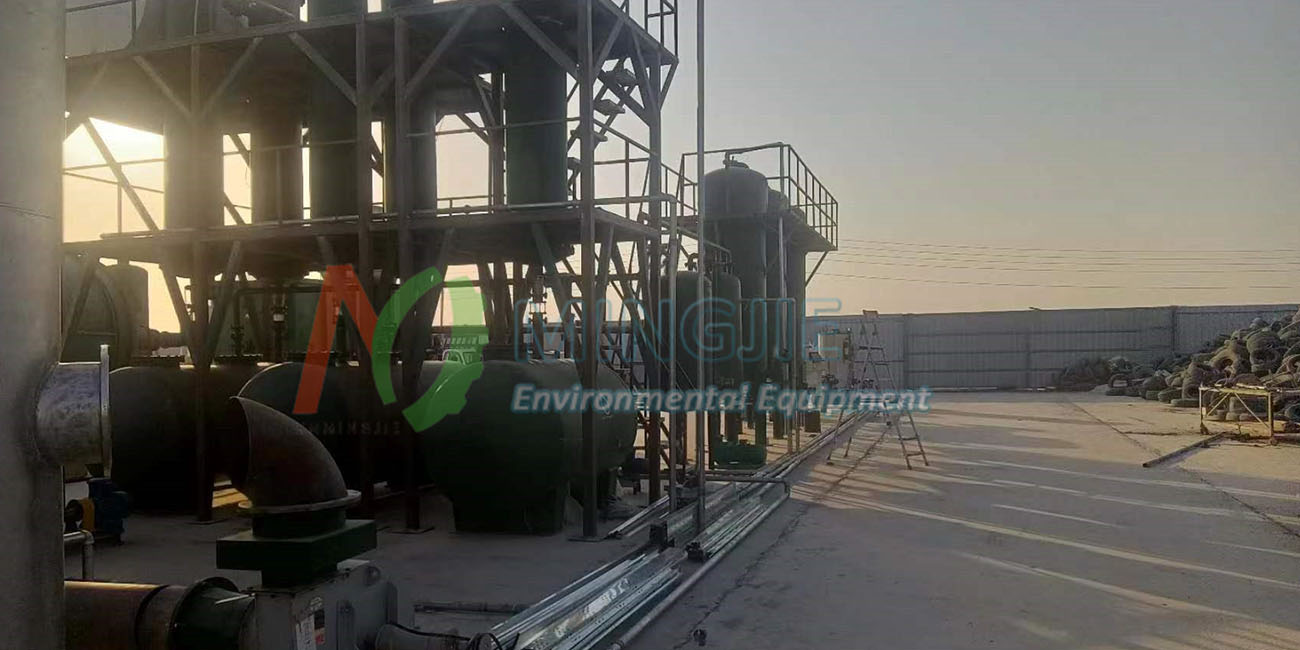

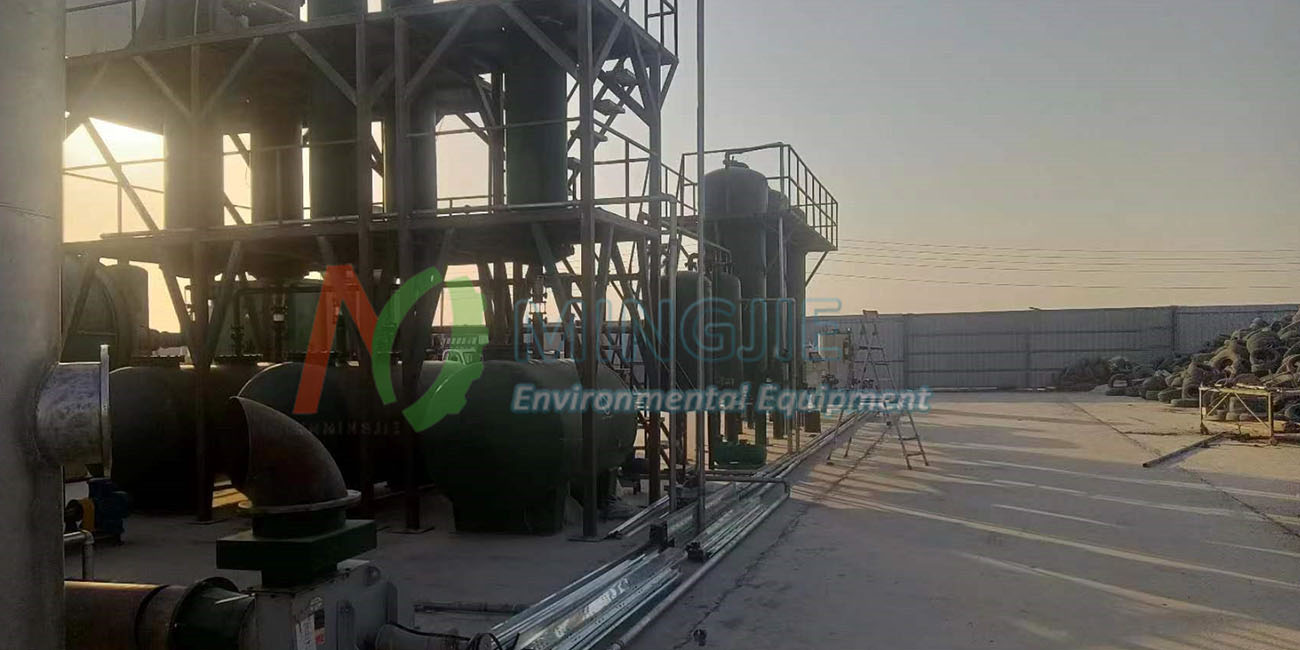

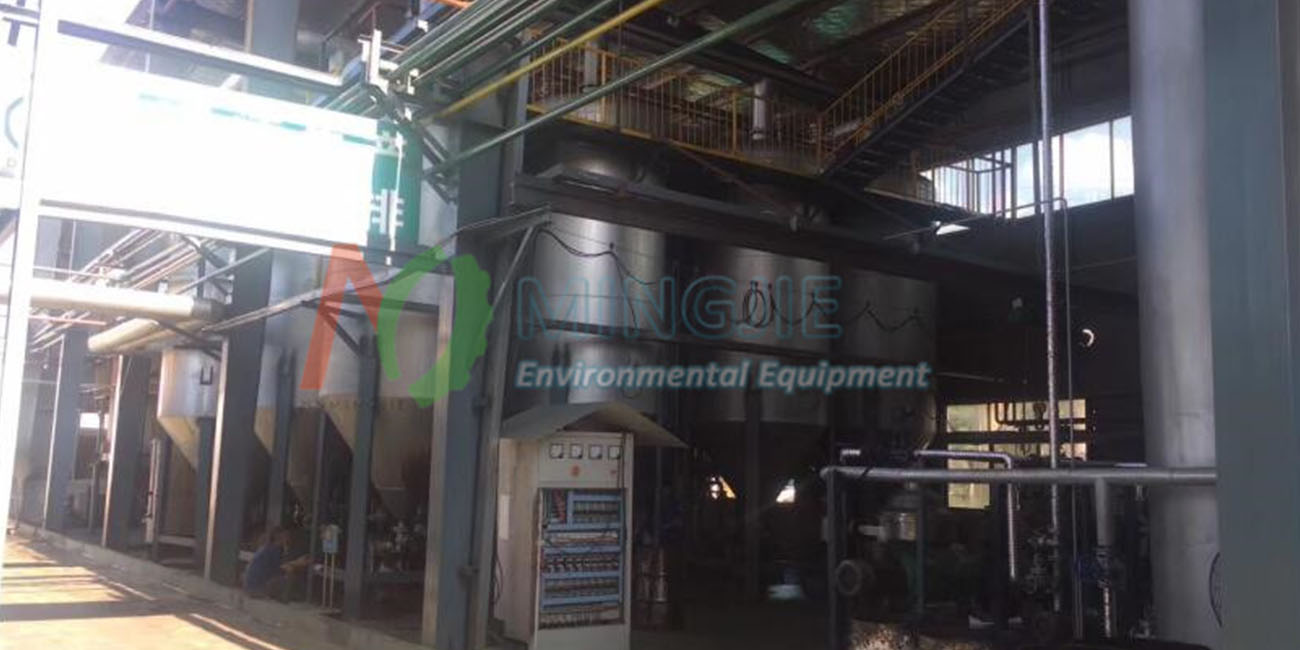

Project we have installed in Middle East
